Gene Expression Data
Assay Details
Assay
Reference: J:122989 Visel A, et al., GenePaint.org: an atlas of gene expression patterns in the mouse embryo. Nucleic Acids Res. 2004 Jan 1;32(Database issue):D552-6
Assay type: RNA in situ
MGI Accession ID: MGI:5421523
Gene symbol: Map3k5
Gene name: mitogen-activated protein kinase kinase kinase 5
Probe: MH1464 probe 1173
Probe preparation: Antisense labelled with digoxigenin RNA
Visualized with: Alkaline phosphatase
Assay notes: Cryosections of fresh frozen material were fixed in 4% paraformaldehyde for 20 min. before further processing. A tyramide-biotin/streptavidin amplification step was included in the in situ hybridization procedure. These data were downloaded from GenePaint.org on 1/30/12.
Results

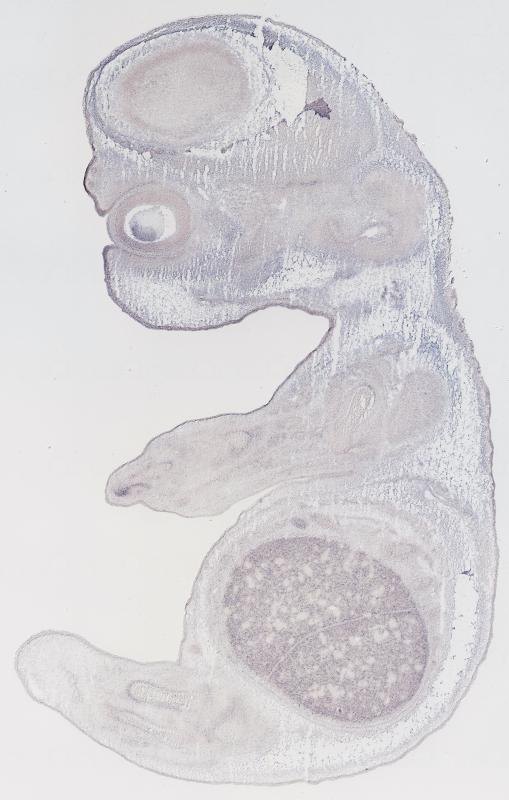

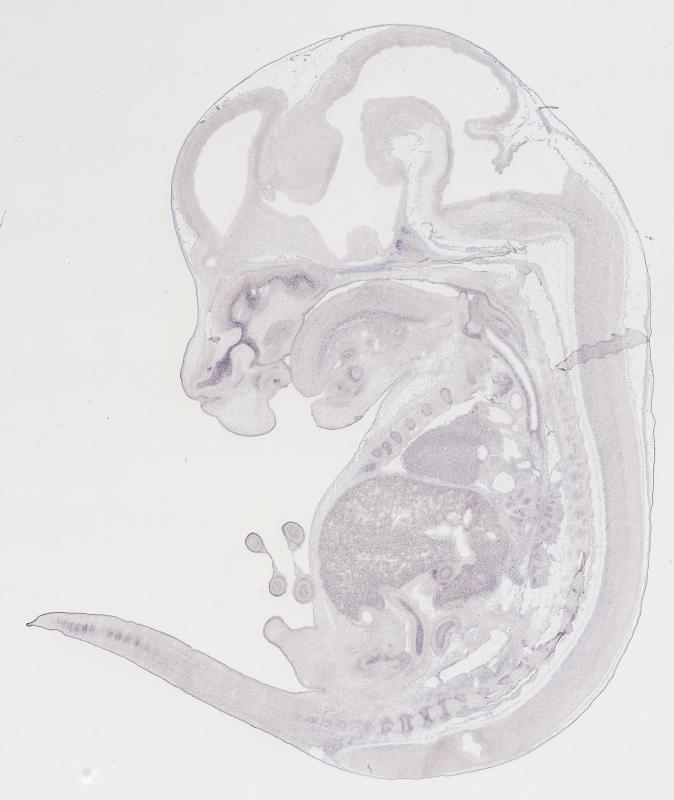

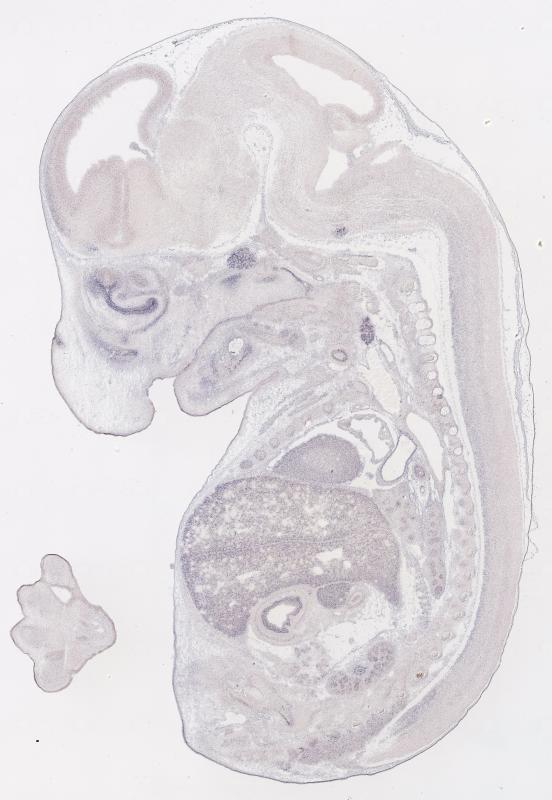

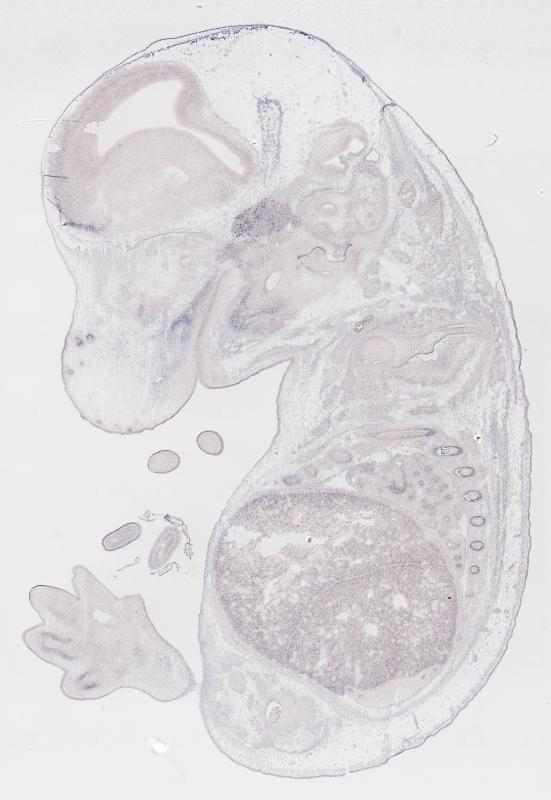

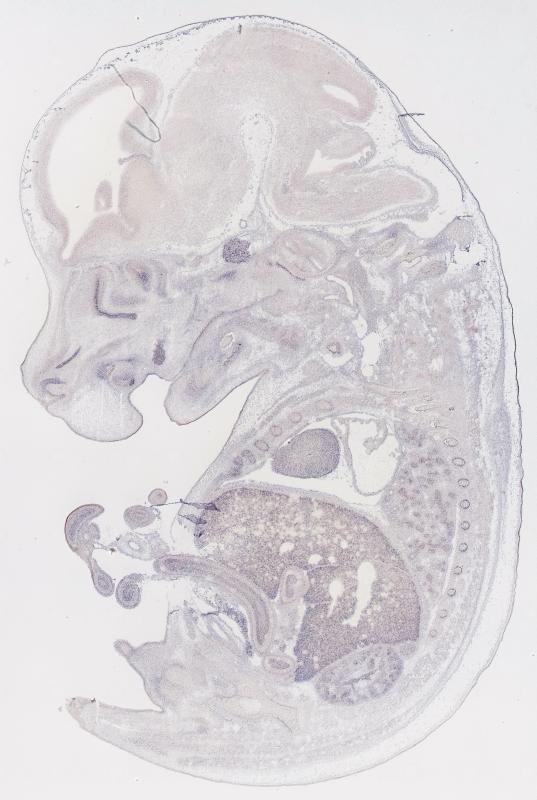

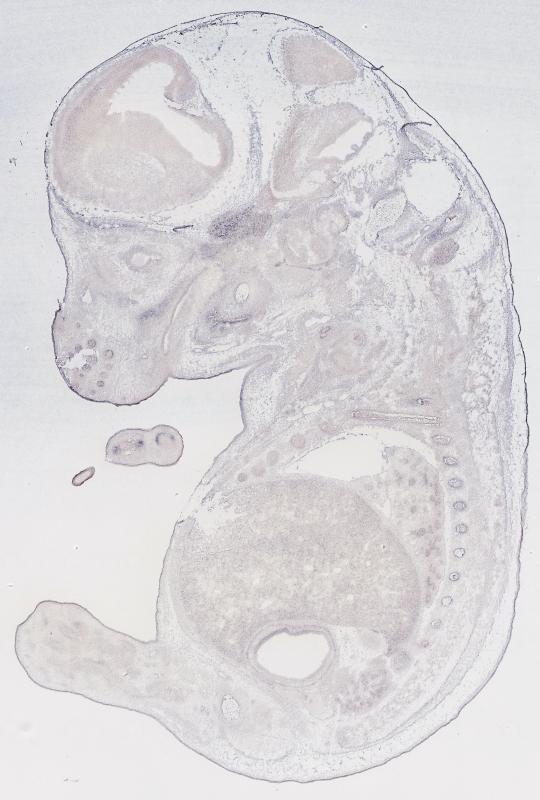

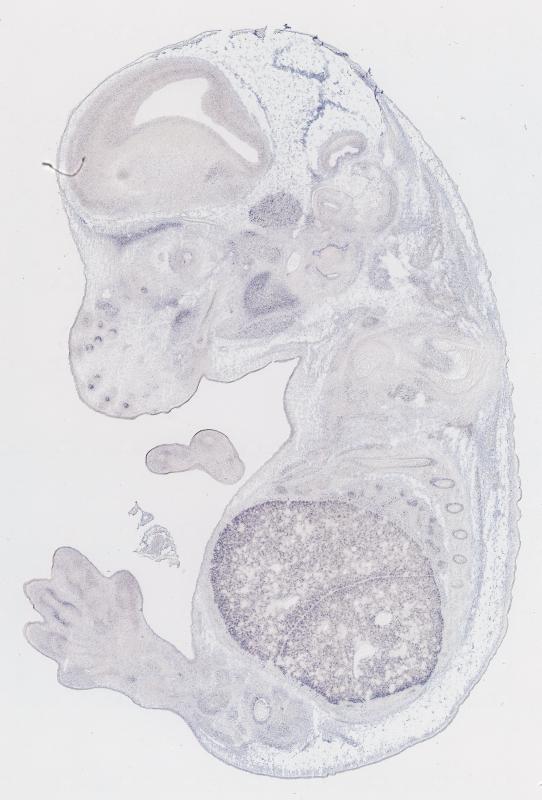

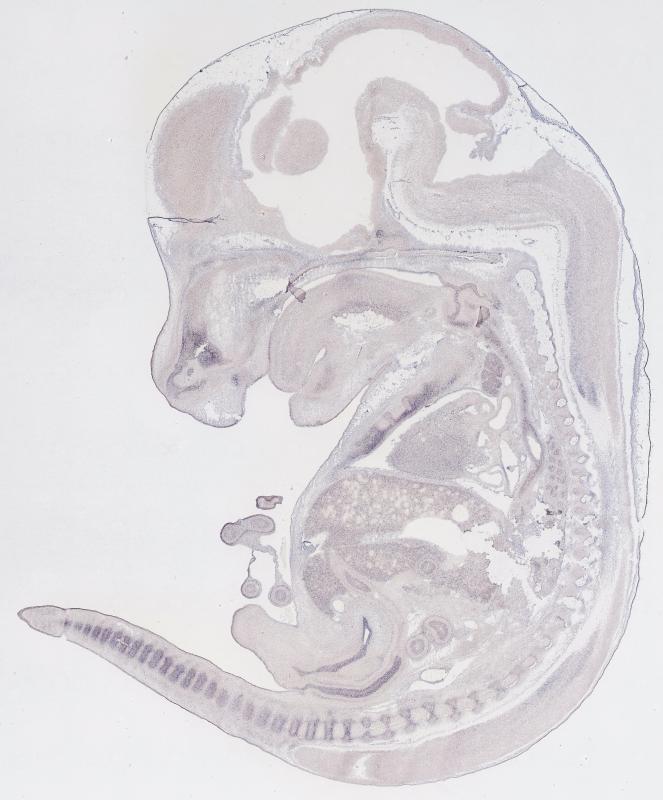

Specimen MH1464; Specimen C1143: embryonic day 14.5 (more )
Structure Level Pattern Image Note
TS22: nervous system Strong Regionally restricted Embryo_C1143_2_3A
TS22: central nervous system Moderate Regionally restricted Embryo_C1143_2_3C
TS22: telencephalon Moderate Regionally restricted Embryo_C1143_2_5A
TS22: cerebral cortex Moderate Regionally restricted Embryo_C1143_2_5A
TS22: neocortex Weak Regionally restricted Embryo_C1143_2_5A
TS22: olfactory cortex Moderate Regionally restricted Embryo_C1143_2_5B
TS22: main olfactory bulb Weak Regionally restricted Embryo_C1143_2_3A
TS22: piriform cortex Moderate Regionally restricted Embryo_C1143_2_5B
TS22: hippocampus Weak Regionally restricted Embryo_C1143_2_5D
TS22: basal ganglia Weak Regionally restricted Embryo_C1143_2_1D
TS22: corpus striatum Weak Regionally restricted Embryo_C1143_2_1D Expression was weak in the corpus striatum (lateral ganglionic eminence).
TS22: basal forebrain Absent
TS22: amygdala Weak Regionally restricted Embryo_C1143_2_1C
TS22: telencephalon septum Absent
TS22: pallidum Weak Regionally restricted Embryo_C1143_2_3A Expression was weak in the pallidum (medial ganglionic eminence).
TS22: diencephalon Weak Regionally restricted Embryo_C1143_2_3B
TS22: thalamus Absent
TS22: hypothalamus Weak Regionally restricted Embryo_C1143_2_3B
TS22: midbrain Moderate Regionally restricted Embryo_C1143_2_4D
TS22: pretectum Weak Regionally restricted Embryo_C1143_2_3D
TS22: superior colliculus Weak Regionally restricted Embryo_C1143_2_4D
TS22: inferior colliculus Moderate Regionally restricted Embryo_C1143_2_4D
TS22: midbrain tegmentum Weak Regionally restricted Embryo_C1143_2_3D
TS22: hindbrain Moderate Regionally restricted Embryo_C1143_2_3C
TS22: cerebellum Weak Regionally restricted Embryo_C1143_2_4D
TS22: pons Weak Regionally restricted Embryo_C1143_2_4D
TS22: medulla oblongata Moderate Regionally restricted Embryo_C1143_2_3C
TS22: spinal cord Moderate Regionally restricted Embryo_C1143_2_4A
TS22: choroid plexus Moderate Regionally restricted Embryo_C1143_2_4D
TS22: meninges Moderate Regionally restricted Embryo_C1143_2_1D
TS22: peripheral nervous system Strong Regionally restricted Embryo_C1143_2_3A
TS22: cranial ganglion Strong Scattered Embryo_C1143_2_3A
TS22: dorsal root ganglion Moderate Regionally restricted Embryo_C1143_2_3C
TS22: eye Moderate Regionally restricted Embryo_C1143_2_6D
TS22: retina Moderate Regionally restricted Embryo_C1143_2_6D
TS22: lens Weak Regionally restricted Embryo_C1143_2_1A
TS22: optic nerve Absent
TS22: nose Moderate Regionally restricted Embryo_C1143_2_5A
TS22: olfactory epithelium Moderate Regionally restricted Embryo_C1143_2_5A
TS22: ear Weak Regionally restricted Embryo_C1143_2_3A
TS22: inner ear Weak Regionally restricted Embryo_C1143_2_3A
TS22: cochlea Weak Regionally restricted Embryo_C1143_2_3A
TS22: inner ear labyrinth Weak Regionally restricted Embryo_C1143_2_1D
TS22: middle ear Weak Regionally restricted Embryo_C1143_2_1C
TS22: alimentary system Moderate Regionally restricted Embryo_C1143_2_3D Expression was detected in the digestive system.
TS22: intestine Moderate Regionally restricted Embryo_C1143_2_4A
TS22: salivary gland Weak Regionally restricted Embryo_C1143_2_2D
TS22: tongue Weak Regionally restricted Embryo_C1143_2_4B
TS22: tooth Moderate Regionally restricted Embryo_C1143_2_3B
TS22: palatal shelf Weak Regionally restricted Embryo_C1143_2_3C
TS22: esophagus Absent
TS22: stomach Weak Regionally restricted Embryo_C1143_2_5B
TS22: liver Moderate Regionally restricted Embryo_C1143_2_3D
TS22: respiratory system Moderate Regionally restricted Embryo_C1143_2_3D
TS22: pharynx Weak Regionally restricted Embryo_C1143_2_3C
TS22: larynx Weak Regionally restricted Embryo_C1143_2_4B
TS22: trachea Weak Regionally restricted Embryo_C1143_2_4B
TS22: main bronchus Weak Regionally restricted Embryo_C1143_2_5A
TS22: lung Moderate Regionally restricted Embryo_C1143_2_3D
TS22: urinary system Moderate Regionally restricted Embryo_C1143_2_4A Expression was detected in the genito-urinary system.
TS22: metanephros Moderate Regionally restricted Embryo_C1143_2_2D
TS22: ureter Weak Regionally restricted Embryo_C1143_2_3D
TS22: bladder Moderate Regionally restricted Embryo_C1143_2_4A
TS22: urethra Moderate Regionally restricted Embryo_C1143_2_4A
TS22: reproductive system Weak Regionally restricted Embryo_C1143_2_3D
TS22: genital tubercle Weak Regionally restricted Embryo_C1143_2_3D
TS22: gonad Absent
TS22: gland Moderate Regionally restricted Embryo_C1143_2_3D Expression was detected in the endocrine system.
TS22: thyroid gland Moderate Regionally restricted Embryo_C1143_2_3D
TS22: pituitary gland Moderate Regionally restricted Embryo_C1143_2_4B
TS22: pancreas Moderate Regionally restricted Embryo_C1143_2_4D
TS22: adrenal gland Weak Regionally restricted Embryo_C1143_2_3C
TS22: cardiovascular system Moderate Regionally restricted Embryo_C1143_2_5A
TS22: heart Moderate Regionally restricted Embryo_C1143_2_3A
TS22: heart atrium Weak Regionally restricted Embryo_C1143_2_4C
TS22: heart ventricle Moderate Regionally restricted Embryo_C1143_2_3A
TS22: blood vessel Moderate Regionally restricted Embryo_C1143_2_5A
TS22: hemolymphoid system Moderate Regionally restricted Embryo_C1143_2_3D Expression was detected in the immune system.
TS22: spleen primordium Absent
TS22: thymus primordium Moderate Regionally restricted Embryo_C1143_2_3D
TS22: appendicular skeleton Moderate Regionally restricted Embryo_C1143_2_3C Expression was detected in the skeleton (limbs, shoulder, hip).
TS22: musculature Weak Ubiquitous Embryo_C1143_2_2D
TS22: face Weak Regionally restricted Embryo_C1143_2_2D Expression was weak in the face/soft tissues.
TS22: facial bone primordium Absent
TS22: cranium Weak Regionally restricted Embryo_C1143_2_4A Expression was weak in the skull (base and vault).
TS22: axial skeleton Moderate Regionally restricted Embryo_C1143_2_2A
TS22: tail Moderate Regionally restricted Embryo_C1143_2_3D
TS22: forelimb Moderate Regionally restricted Embryo_C1143_2_6A
TS22: hindlimb Weak Regionally restricted Embryo_C1143_2_1D
TS22: integumental system Moderate Regionally restricted Embryo_C1143_2_1D
TS22: skin Moderate Regionally restricted Embryo_C1143_2_3B
TS22: hair Moderate Regionally restricted Embryo_C1143_2_1D
TS22: vibrissa follicle Moderate Regionally restricted Embryo_C1143_2_1D Expression was detected in whisker follicle.
