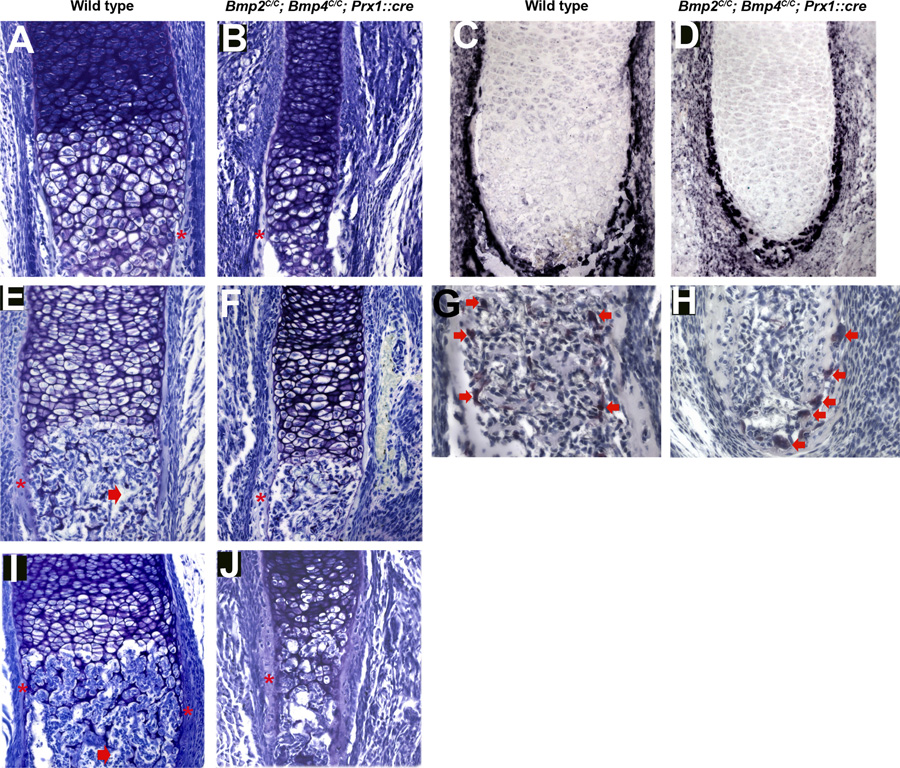

(A-D) Sagittal sections of forelimb from E15.5 embryos. (A & B) Stained with toluidine blue. (A) Distal ulna from wild type embryo, (B) distal ulna/radius from Bmp2^tm1Cjt/Bmp2^tm1Cjt Bmp4^tm1Jfm/Bmp4^tm1Jfm Tg(Prrx1-cre)1Cjt/0 embryo. Mineralized cartilage is shown by dark purple and osteoid is shown by light blue (red asterisk). (C & D) Humeri sections were hybridized with digoxigenin labeled riboprobe for CalI. (C) Section of wild type humerus from E15.5 embryo, (D) from Bmp2^tm1Cjt/Bmp2^tm1Cjt Bmp4^tm1Jfm/Bmp4^tm1Jfm Tg(Prrx1-cre)1Cjt/0 embryo. (E-H) Sagittal sections of zeugopod from E17.5 embryos (E and F) stained with toluidine blue while G and H are stained for TRAP (brown stain, red arrow). (E and G) E17.5 proximal radius from wild-type embryo, (F and H) E17.5 proximal ulna/radius from Bmp2^tm1Cjt/Bmp2^tm1Cjt Bmp4^tm1Jfm/Bmp4^tm1Jfm Tg(Prrx1-cre)1Cjt/0 embryo. Although vascularization occurs in the absence of BMP2 and BMP4, few osteoclasts are observed in the mineralized cartilage in Bmp2^tm1Cjt/Bmp2^tm1Cjt Bmp4^tm1Jfm/Bmp4^tm1Jfm Tg(Prrx1-cre)1Cjt/0 mice. (I & J) Sections of newborn proximal radius (I) from control animal and newborn proximal ulna/radius (J) from Bmp2^tm1Cjt/Bmp2^tm1Cjt Bmp4^tm1Jfm/Bmp4^tm1Jfm Tg(Prrx1-cre)1Cjt/0 mouse stained with toluidine blue. Red arrow shows the bone marrow cavity in (E) and (I). Note that bone collar (red *) forms at the right time and place in the absence of BMP2 and BMP4. Also note that since Bmp2^tm1Cjt/Bmp2^tm1Cjt Bmp4^tm1Jfm/Bmp4^tm1Jfm Tg(Prrx1-cre)1Cjt/0 mice occaisionally have only one bone in zeugopod and the elbow joint is occasionally fused, it is difficult to distinguish between the ulna and the radius.
