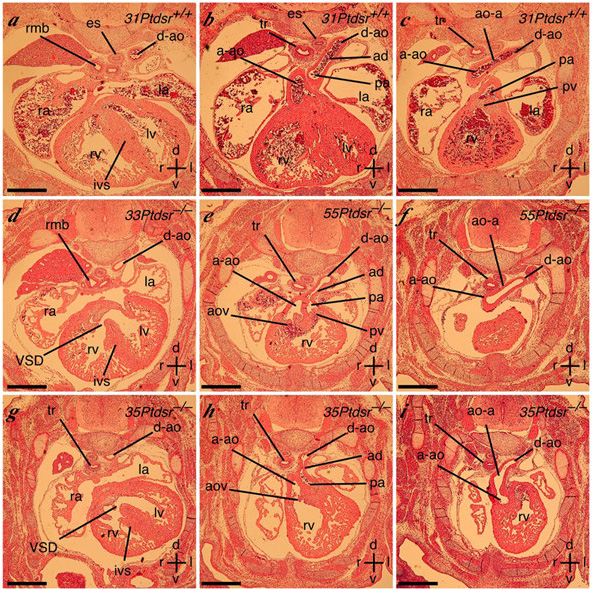

Transverse coronal sections stained with hematoxylin and eosin. A-C: Serial caudal to cranial sections of wild type embryo showing normal cardiac and vascular anatomy. The left and right ventricles (lv, rv) are seperated by the interventricular septum (ivs). The ascending aorta (a-ao) arises from the left ventricle, continues on as the aortic arch (ao-a), which joins the descending aorta (d-ao). The pulmonary artery (pa) arises from the right ventricle via the pulmonary valve (pv) and continues as the arterial duct (ad), which joins the descending aorta. The left and right atria (la, ra), trachea (tr), right main bronchus (rmb) and esophagus (es) are indicated. D: Section through Jmjd6^tm1Gbf/Jmjd6^tm1Gbf embryo indicating the ventricular septal defect (VSD). E & F: Sections through mutant embryo showing that both aorta and pulmonary artery arise from the right ventricle (double outlet right ventricle), and that the arterial duct of the pulmnary artery is narrow in comparison to the aorta, indicating pulmonary artery hypoplasia. The aortic valve (aov) is indicated. G-I: Serial caudal to cranial sections through mutant embryo showing a VSD, aorta arising from the right ventricle (double outlet right ventricle) and a severely narrowed atrerial duct. Scale bars: 500um axes: r, right; l, left; d, dorsal; v, ventral.
