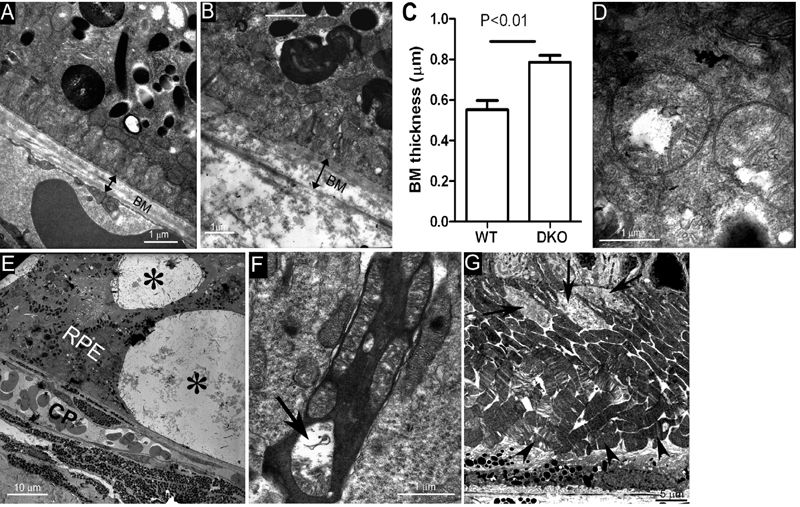

Transmission electron microscopic (TEM) images of mouse eyes. (A) Image from an 18-month wild-type (WT) mouse. (B) Image from an 18-month Ccl2^tm1Rol/Ccl2^tm1Rol Cx3cr1^tm1Litt/Cx3cr1^tm1Litt (DKO) mouse. (C) The average thickness of Bruch membrane in WT and mutant mice. N = 6 (eyes). (D) Vacuolated changes in retinal pigment epithelium (RPE) mitochondria from mutant mice. (E) Vacuolated changes (asterisks) in RPE cells in mutant mice. (F) Photoreceptor inner segment damage (arrow) in mutant mice. (G) Photoreceptor inner segment damage (arrows) and outer segment disorientation (arrowheads) in an area without vacuolated RPE damage. BM, Bruch membrane; CP, choroidal capillaries; RPE, retinal pigment epithelium.
