Phenotype Image Detail


Caption

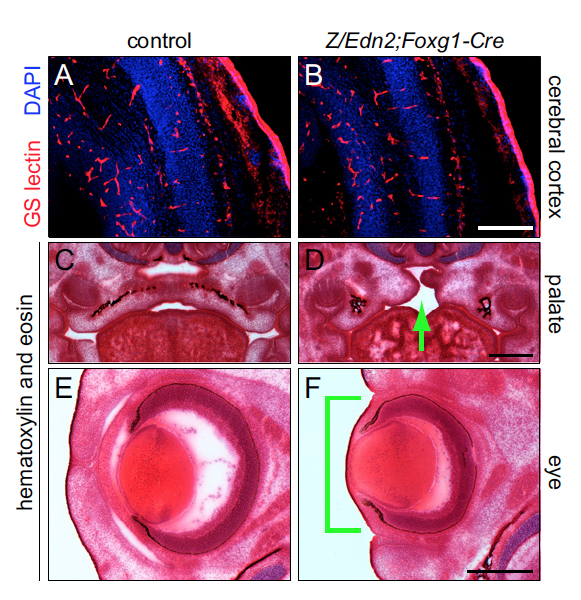

Absence of vascular defects in the brains of embryonic day 18 (E18) Igs1^{tm11(CAG-Bgeo,-Edn2)Nat}/Igs1⁺ Foxg1^tm1(cre)Skm/Foxg1⁺ (Z/Edn2;Foxg1-Cre) mice. (A and B) No alterations in CNS vascular architecture are apparent in E18 cerebral cortex of mutant mice relative to control mice as determined by GS-lectin staining. The cortical surface is to the right. (Scale bar: 200 um.) (C and D) Cleft palate (green arrow; the tongue is at the bottom center of the coronal section) and (E and F) open eyelids (green bracket) at E18 provide evidence that bioactive Edn2 is being produced in the heads of mutant mice. (C and D, scale bar: 200 um; E and F, scale bar: 500 um.)

Copyright

This image is from Rattner A, Proc Natl Acad Sci U S A 2013 Oct 1;110(40):E3830-E3839. Copyright 2013 National Academy of Sciences, U.S.A. J:201133

Associated Alleles

Symbol	Name
Foxg1^tm1(cre)Skm	forkhead box G1; targeted mutation 1, Susan K McConnell
Igs1^tm11(CAG-Bgeo,-Edn2)Nat	intergenic site 1; targeted mutation 11, Jeremy Nathans

Associated Genotypes

Allelic Composition	Genetic Background
Igs1^tm11(CAG-Bgeo,-Edn2)Nat/Igs1^+ Foxg1^tm1(cre)Skm/Foxg1^+	involves: 129P2/OlaHsd * 129S1/Sv * 129X1/SvJ * C57BL/6
