Caption

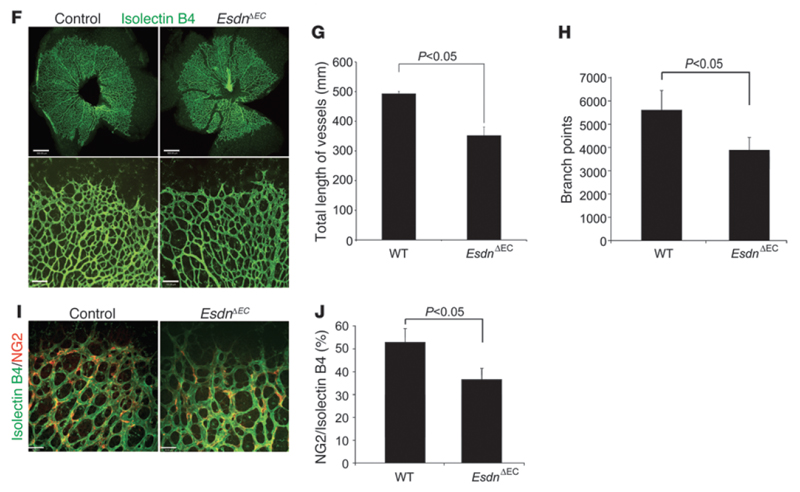

Retinal angiogenesis in Dcbld2^tm1Mhms/Dcbld2^tm1.1Mhms Tg(Cdh5-cre)7Mlia/0 (Esdn^deltaEC) mice. Representative examples (F) and quantification in the entire retina (G and H) of isolectin staining of blood vessels in conditional mutant mice and their control littermates on postnatal day 5. n = 8. Scale bars: 500 um upper panels, 100 um lower panels. (I and J) Retinal pericyte staining. Representative examples (I) and quantification (J) of NG2 immunostaining of retinal blood vessels in conditional mutant mice and their control littermates on postnatal day 5. n = 8. Scale bars: 50 um.

Copyright

This image is from Nie L, J Clin Invest 2013 Dec 2;123(12):5082-97 and is displayed with the permission of the American Society for Clinical Investigation who owns the Copyright. J:207629

Associated Alleles

Symbol	Name
Dcbld2^tm1Mhms	discoidin, CUB and LCCL domain containing 2; targeted mutation 1, Mehran M Sadeghi
Tg(Cdh5-cre)7Mlia	transgene insertion 7, M Luisa Iruela-Arispe

Associated Genotypes

Allelic Composition	Genetic Background
Dcbld2^tm1Mhms/Dcbld2^tm1.1Mhms Tg(Cdh5-cre)7Mlia/0	involves: 129S6/SvEvTac * C57BL/6J * FVB/N
