Phenotype Image Detail


Caption

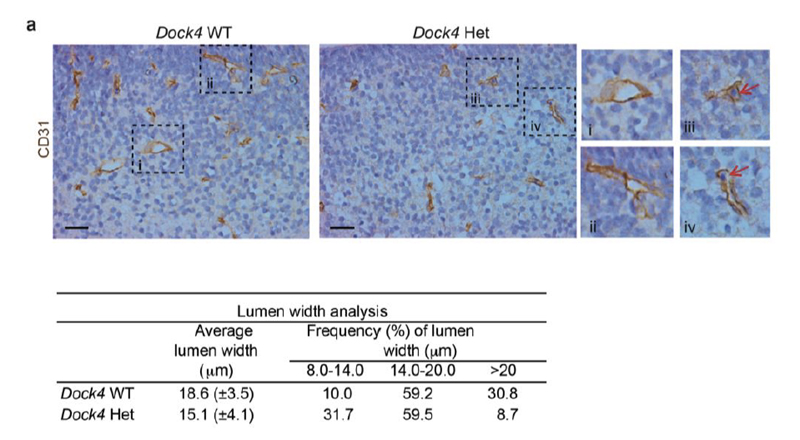

Images of sections immunostained with CD31 to visualize blood vessel lumens in the brain of E13.5 wild-type (Dock4 WT) and Dock4^{tm1(NCOM)Mfgc}/Dock4⁺ (Dock4 Het) embryos. Scale bar, 50 um. i-iv: magnifications of areas outlined in larger images. Red arrows point to blood cells in small calibre lumens. Table shows analysis of lumen size (three embryos for each condition) in microscopic fields across the whole hemisphere. 40 vessels with largest diameter lumens were analysed for each embryo.

Copyright

This image is from Abraham S, Nat Commun 2015;6():7286, and is displayed under the terms of the Creative Commons Attribution 4.0 International License. J:224385

Associated Alleles

Symbol	Name
Dock4^tm1(NCOM)Mfgc	dedicator of cytokinesis 4; targeted mutation 1, Mammalian Functional Genomics Centre
Dock4^tm1(NCOM)Mfgc	dedicator of cytokinesis 4; targeted mutation 1, Mammalian Functional Genomics Centre

Associated Genotypes

Allelic Composition	Genetic Background
Dock4^tm1(NCOM)Mfgc/Dock4^+	involves: C57BL/6J * C57BL/6NCrl
