GO Annotations Graph

• Symbol: Recql4
• Name: RecQ protein-like 4
• ID: MGI:1931028

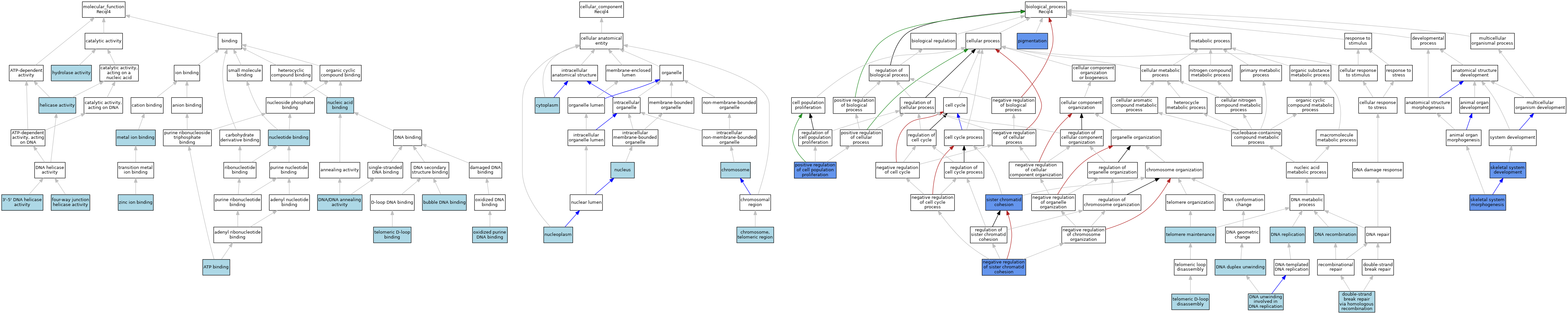

GO annotations

A table of the annotations represented in this image is provided below.

• Gray arrows indicate "is_a"; Blue arrows indicate "part_of"; Black arrows indicate "regulates"; Green arrows indicate "positively_regulates"; Red arrows indicate "negatively_regulates"
• Experimental annotations are indicated by darker-colored nodes; other annotations by lighter-colored nodes
• Clicking on any node links to the MGI GO browser and information on all genes annotated to the term or its subterms.
• Graph generated Fri Mar 10 20:53:16 2023.

---

Gene Ontology Evidence Code Abbreviations:

Experimental:

EXP Inferred from experiment

HMP Inferred from high throughput mutant phenotype

HGI Inferred from high throughput genetic interaction

HDA Inferred from high throughput direct assay

HEP Inferred from high throughput expression pattern

IDA Inferred from direct assay

IEP Inferred from expression pattern

IGI Inferred from genetic interaction

IMP Inferred from mutant phenotype

IPI Inferred from physical interaction

Homology:

IAS Inferred from ancestral sequence

IBA Inferred from biological aspect of ancestor

IBD Inferred from biological aspect of descendant

IKR Inferred from key residues

IMR Inferred from missing residues

IRD Inferred from rapid divergence

ISA Inferred from sequence alignment

ISM Inferred from sequence model

ISO Inferred from sequence orthology

ISS Inferred from sequence or structural similarity

Automated:

IEA Inferred from electronic annotation

RCA Reviewed computational analysis

Other:

IC Inferred by curator

NAS Non-traceable author statement

ND No biological data available

TAS Traceable author statement

---

Category	GO ID	Classification Term	Evidence	Reference
Molecular Function	GO:0043138	3'-5' DNA helicase activity	IBA	J:265628
Molecular Function	GO:0005524	ATP binding	IEA	J:60000
Molecular Function	GO:0005524	ATP binding	IEA	J:72247
Molecular Function	GO:0000405	bubble DNA binding	ISO	J:164563
Molecular Function	GO:1990814	DNA/DNA annealing activity	ISO	J:164563
Molecular Function	GO:0009378	four-way junction helicase activity	IBA	J:265628
Molecular Function	GO:0004386	helicase activity	IEA	J:60000
Molecular Function	GO:0004386	helicase activity	IEA	J:72247
Molecular Function	GO:0016787	hydrolase activity	IEA	J:60000
Molecular Function	GO:0046872	metal ion binding	IEA	J:60000
Molecular Function	GO:0003676	nucleic acid binding	IEA	J:72247
Molecular Function	GO:0000166	nucleotide binding	IEA	J:60000
Molecular Function	GO:0032357	oxidized purine DNA binding	ISO	J:164563
Molecular Function	GO:0061821	telomeric D-loop binding	ISO	J:164563
Molecular Function	GO:0008270	zinc ion binding	IEA	J:72247
Cellular Component	GO:0005694	chromosome	IBA	J:265628
Cellular Component	GO:0000781	chromosome, telomeric region	ISO	J:164563
Cellular Component	GO:0005737	cytoplasm	IBA	J:265628
Cellular Component	GO:0005654	nucleoplasm	ISO	J:164563
Cellular Component	GO:0005634	nucleus	IBA	J:265628
Biological Process	GO:0032508	DNA duplex unwinding	ISO	J:164563
Biological Process	GO:0006310	DNA recombination	IEA	J:72247
Biological Process	GO:0006260	DNA replication	ISO	J:164563
Biological Process	GO:0006268	DNA unwinding involved in DNA replication	IBA	J:265628
Biological Process	GO:0000724	double-strand break repair via homologous recombination	IBA	J:265628
Biological Process	GO:0045875	negative regulation of sister chromatid cohesion	IMP	J:97101
Biological Process	GO:0043473	pigmentation	IMP	J:97101
Biological Process	GO:0008284	positive regulation of cell population proliferation	IMP	J:108182
Biological Process	GO:0007062	sister chromatid cohesion	IMP	J:97101
Biological Process	GO:0001501	skeletal system development	IMP	J:108182
Biological Process	GO:0048705	skeletal system morphogenesis	IMP	J:97101
Biological Process	GO:0000723	telomere maintenance	ISO	J:164563
Biological Process	GO:0000723	telomere maintenance	IBA	J:265628
Biological Process	GO:0061820	telomeric D-loop disassembly	ISO	J:164563
