Table pub.mgd.bib_workflow_data
A record in this table represents Reference information needed by the Triage Workflow process

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_assoc_key serial 10  √  nextval('bib_workflow_data_seq'::regclass)
seq_source_assoc._assoc_key Implied Constraint R
primary key
_refs_key int4 10
bib_refs._refs_key bib_workflow_data__refs_key_fkey C
foreign key to BIB_Refs
haspdf int2 5 0 does Reference have a PDF?
_supplemental_key int4 10
voc_term._term_key bib_workflow_data__supplemental_key_fkey R
foreign key to VOC_Term where_Vocab_key = 130 (Workflow Supplemental Status)
linksupplemental text 2147483647  √  null not used/can be removed
_extractedtext_key int4 10
voc_term._term_key bib_workflow_data__extractedtext_key_fkey R
foreign key to VOC_Term where_Vocab_key = 142 (Lit Triage Extracted Text Section)
extractedtext text 2147483647  √  null PDF data that is saved as text per specific section
_createdby_key int4 10 1001
mgi_user._user_key bib_workflow_data__createdby_key_fkey R
user who created the record
_modifiedby_key int4 10 1001
mgi_user._user_key bib_workflow_data__modifiedby_key_fkey R
user who last modified the record
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 0 rows at Mon Sep 11 06:12 EDT 2023

Indexes:
Column(s) Type Sort Constraint Name
_assoc_key Primary key, Used to cluster data Asc bib_workflow_data_pkey
_createdby_key Performance Asc bib_workflow_data_idx_createdby_key
_extractedtext_key Performance Asc bib_workflow_data_idx_extractedtext_key
haspdf Performance Asc bib_workflow_data_idx_haspdf
_modifiedby_key Performance Asc bib_workflow_data_idx_modifiedby_key
_refs_key Performance Asc bib_workflow_data_idx_refs_key
_supplemental_key Performance Asc bib_workflow_data_idx_supplemental_key

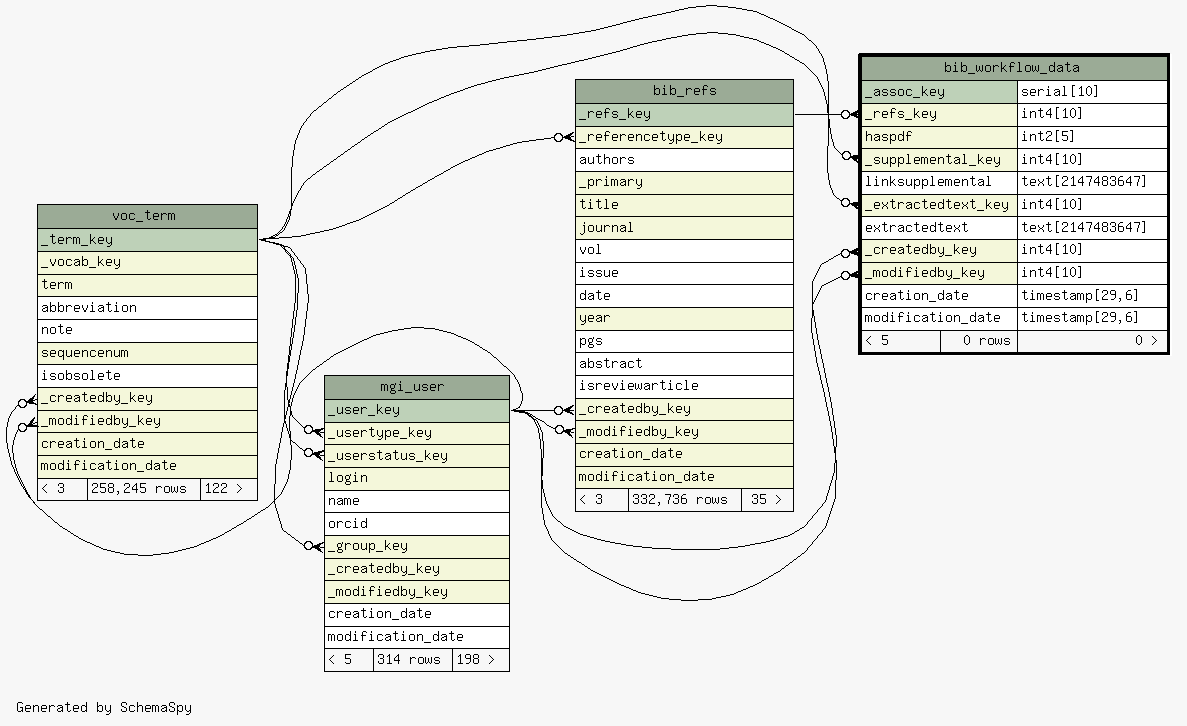

Close relationships  within of separation:
