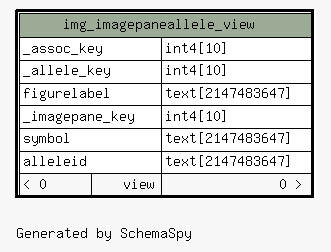

View pub.mgd.img_imagepaneallele_view Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_assoc_key int4 10  √  null
seq_allele_assoc._assoc_key Implied Constraint R
_allele_key int4 10  √  null
figurelabel text 2147483647  √  null
_imagepane_key int4 10  √  null
symbol text 2147483647  √  null
alleleid text 2147483647  √  null

Analyzed at Mon Sep 11 06:12 EDT 2023

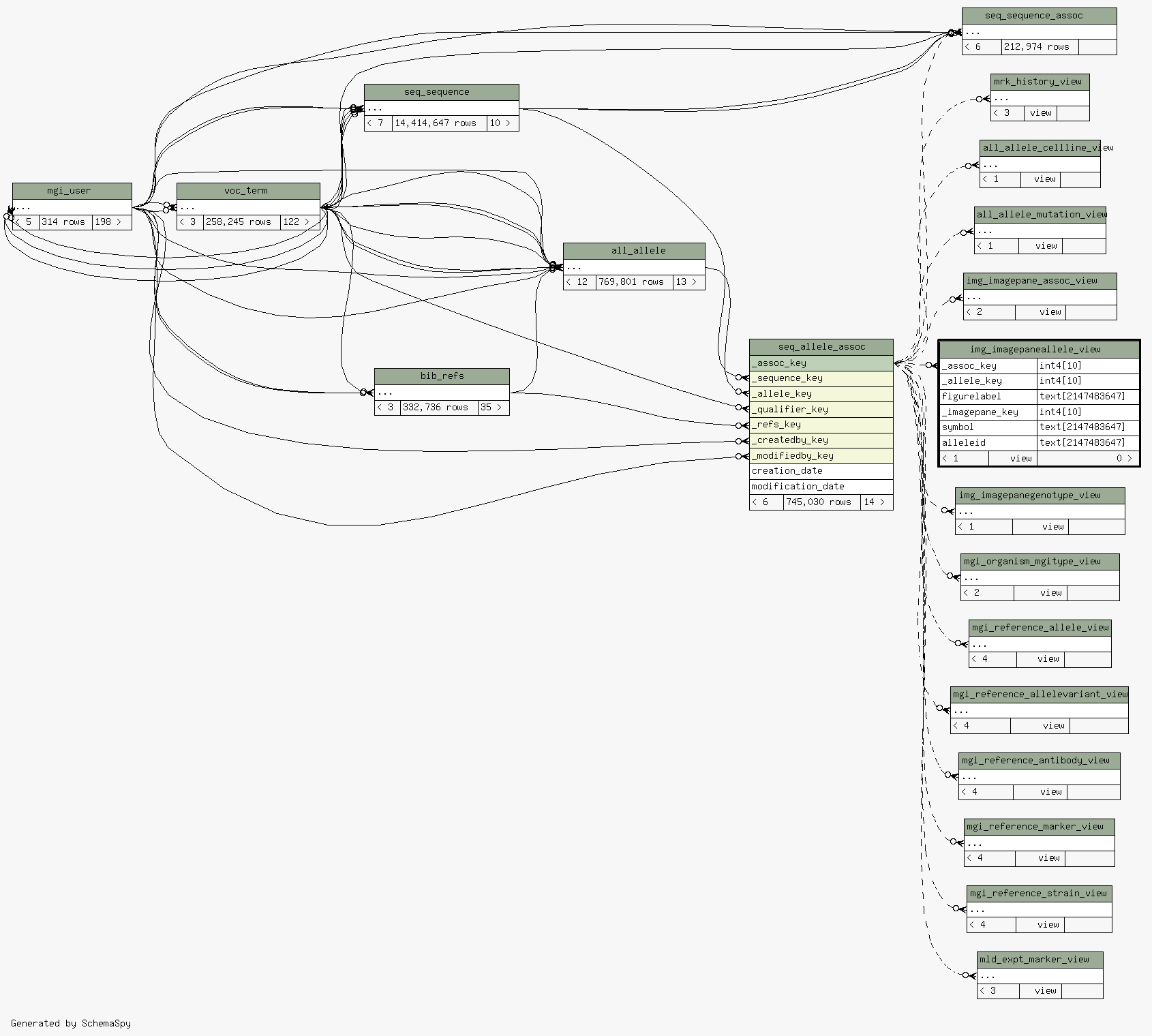

Close relationships:
