Table pub.mgd.mld_isregion
Defines number of grain counts by chromosomal region for a specific In Situ Experiment.

Detail of MLD_InSitu.

Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
_expt_key int4 10
mld_expts._expt_key mld_isregion__expt_key_fkey C
foreign key to MLD_Expts
sequencenum int4 10 sequence number for ordering records
region text 2147483647  √  null chromosomal region
graincount int4 10 # of grains observed over the region
creation_date timestamp 29,6 now() date record was created
modification_date timestamp 29,6 now() date record was last modified

Table contained 2,523 rows at Mon Sep 11 06:12 EDT 2023

Indexes:
Column(s) Type Sort Constraint Name
_expt_key + sequencenum Primary key, Used to cluster data Asc/Asc mld_isregion_pkey

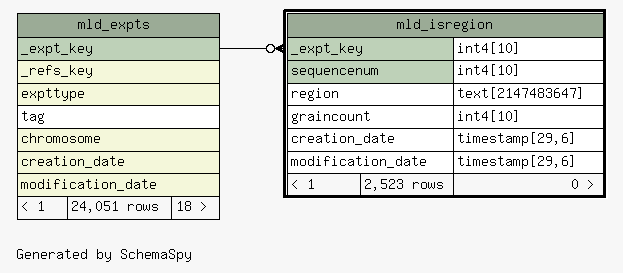

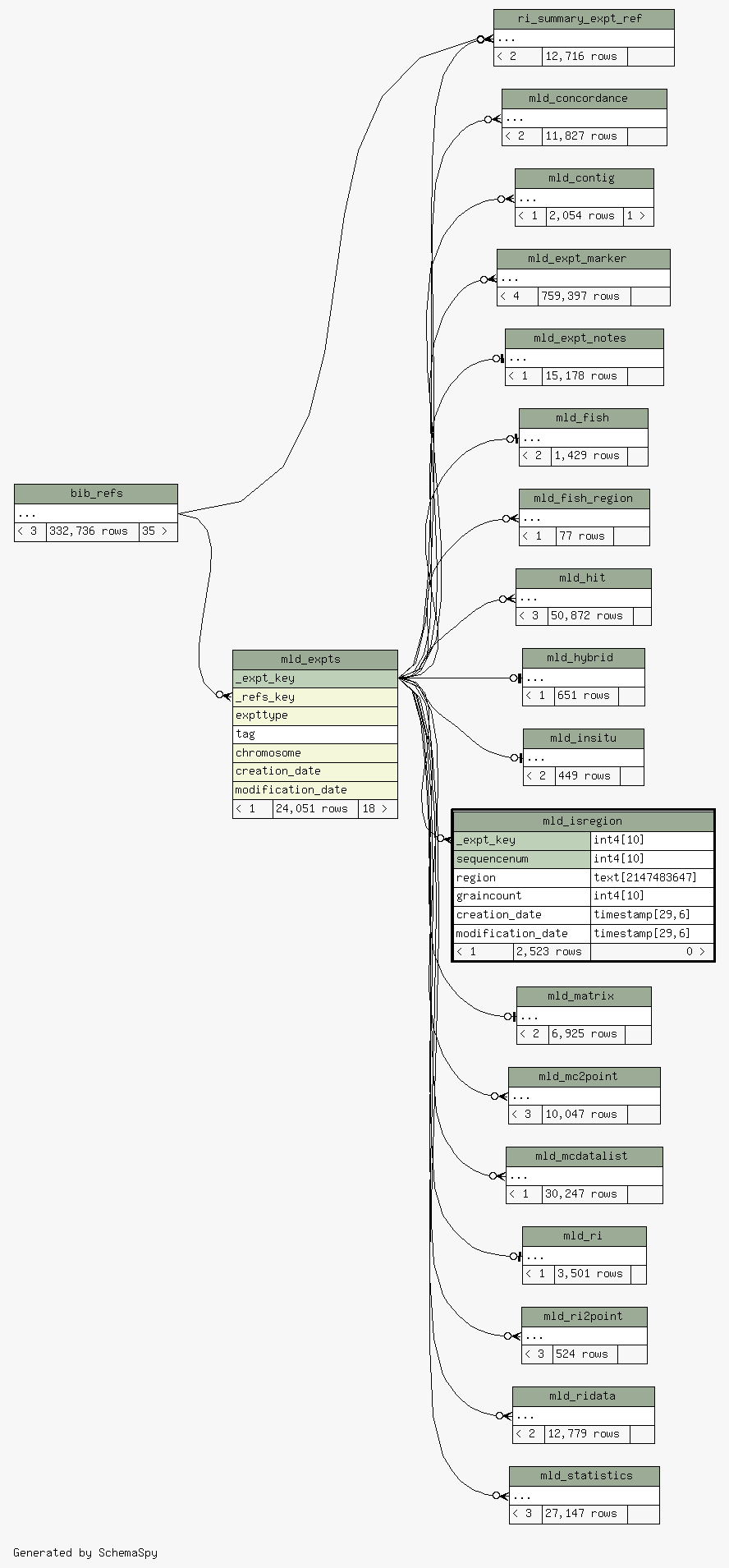

Close relationships  within of separation:
