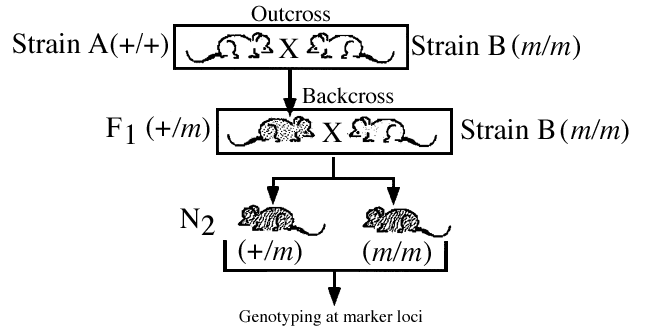

Figure 9.11 Illustration of a backcross mapping protocol. In this illustration, strain B is homozygous for a fully recessive mutation (m) that does not interfere with viability or fertility. All N2 generation animals can be scored with either a mutant or a wild-type phenotype that translates directly into genotype at the m locus.
